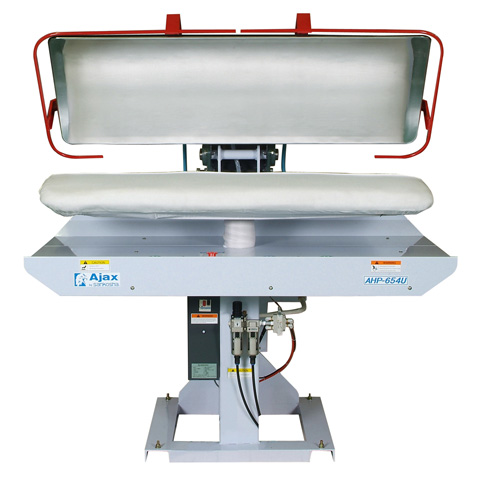

Hot Head Press AHP-654U



Specification

PRODUCT NAME HOT HEAD PRESS
MODEL AHP-218U AHP-336U AHP-554U AHP-654U
POWER 110~220V,
Single ph, 0.14A
110~220V,
Single ph, 0.14A
110~220V,
Single ph, 0.14A
110~220V,
Single ph, 0.14A
WEIGHT 496 lb / 225 Kg 595 lb / 270 Kg 726 lb / 330 Kg 792 lb / 360 Kg
AIR CONSUMPTION 5L / Cycle 14L / Cycle 14L / Cycle 14L / Cycle
STEAM CONSUMPTION 0.33 hp / 5 Kg/h 0.9 hp / 14 Kg/h 1.63 hp / 25 Kg/h 2.1 hp / 32 Kg/h
AIR PRESSURE 73PSI / 0.5MPa 73PSI / 0.5MPa 73PSI / 0.5MPa 73PSI / 0.5MPa
STEAM PRESSURE 73PSI / 0.5MPa 73PSI / 0.5MPa 73PSI / 0.5MPa 73PSI / 0.5MPa
AIR CONNECTION 3/8B 3/8B 3/8B 3/8B
STEAM CONNECTION INLET 1/2B, OUTLET1/2B INLET 1/2B, OUTLET1/2B INLET 1/2B, OUTLET1/2B INLET 1/2B, OUTLET1/2B
DIMENSION (mm)
(W x D x H) (inch)
720x996x1605
28.4x39.2x63.2
1220x946x1615
48.1x37.3x63.6
1500x996x1670
59.1x39.2x65.8
1500x996x1685
59.1x39.2x66.3
