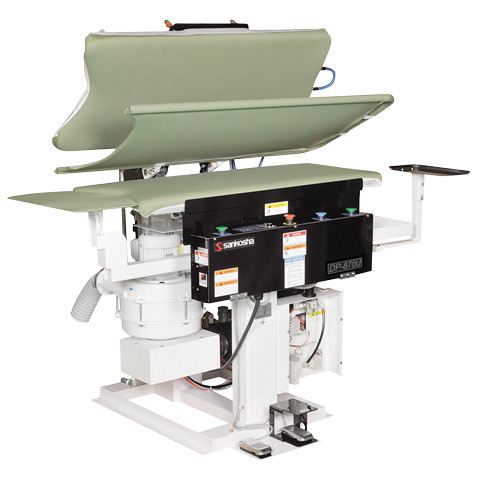

Double Legger Press DP-870U
Click on above image to see video
- Perfect seam line
- Press preasure (Khaki or Dress)
- Press both legs at once providing greater productivity
Specification
| MODEL | DP-870U |
| POWER | 220V, 3ph, 2.8A |
| WEIGHT | 770 lbs, 350Kg |
| AIR CONSUMPTION | 22.5Liter / Cycle |
| STEAM CONSUMPTION | 0.93 HP / 14.3 Kg/h |
| AIR PRESSURE | 85 PSI / 0.6 MPa |
| STEAM PRESSURE | 85PSI / 0.6MPa |
| AIR CONNECTION | 3/8B |
| STEAM CONNECTION | INLET 1/2B, OUTLET1/2B |
| DIMENSION (mm) (W x D x H) (inch) |
1700 x 1060 x 1550 67 x 41.8 x 61.1 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
