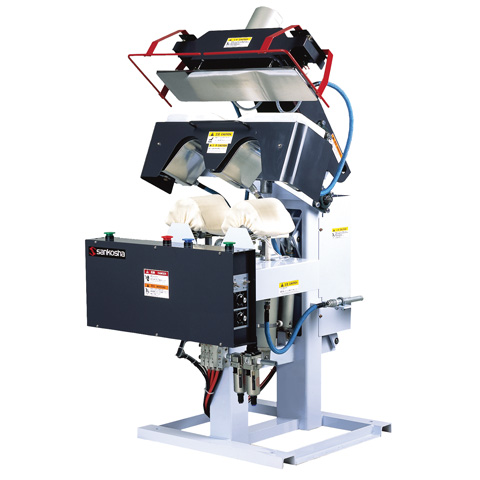

Single Collar Cuff Press Tensioning Type LP-690U-V2

- Tensioning function produces superior quality while preventing shrinkage
- Innovative design and technology
- Compact design and easy maintenance


  Click on above image to see video

Specification
PRODUCT NAME SINGLE
COLLAR & CUFF
TENSIONING TYPE
DOUBLE
COLLAR & CUFF
VACUUM TYPE
QUADRUPLE
COLLAR & CUFF
TENSIONING TYPE
MODEL LP-690U-V2 LP-685U LP-370U-V2
POWER 110-220V Single Phase, 0.8-0.4A 220V 3Phase, 1.6A 110-220V Single Phase, 0.8-0.4A
WEIGHT 484 lbs / 220 Kg 639 lbs / 290 Kg 1034 lbs / 470 Kg
AIR CONSUMPTION 23 Liter / Cycle 14 Liter / Cycle 57 Liter / Cycle
STEAM CONSUMPTION 0.65 HP / 10 Kg/H 0.42 HP / 6.5 Kg/H 1.5 HP / 10 Kg/H
AIR PRESSURE 85 PSI / 0.6 Mpa 85 PSI / 0.6 Mpa 85 PSI / 0.6 Mpa
STEAM PRESSURE 85 PSI / 0.6 Mpa 85 PSI / 0.6 Mpa 85 PSI / 0.6 Mpa
AIR CONNECTION 3/8 B 3/8 B 3/8 B
STEAM CONNECTION Inlet 1/2 B,
Outlet 1/2 B x 2
Inlet 1/2 B,
Outlet 1/2 B x 2
Inlet 1/2 B,
Outlet 1/2 B x 2
DIMENSION (mm)
(W x D x H) (inch)
710 x 1000 x 1610
28.0 x 39.4 x 63.4
1000 x 880 x 1525
39.4 x 34.6 x 60.0
1385 x 1370 x 1790
54.5 x 53.9 x 70.5
