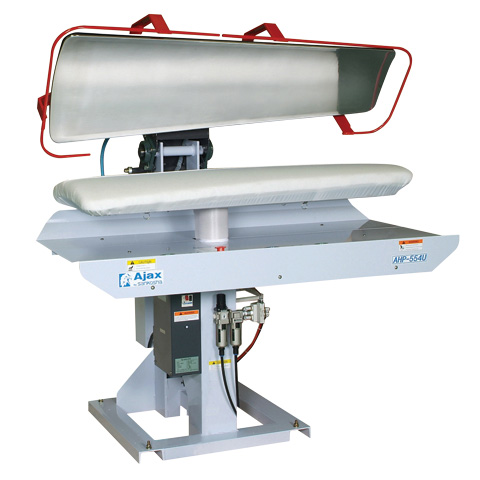

Hot Head Press AHP-554U
Specification
| PRODUCT NAME | HOT HEAD PRESS | |||
| MODEL | AHP-218U | AHP-336U | AHP-554U | AHP-654U |
| POWER | 110~220V, Single ph, 0.14A |
110~220V, Single ph, 0.14A |
110~220V, Single ph, 0.14A |
110~220V, Single ph, 0.14A |
| WEIGHT | 496 lb / 225 Kg | 595 lb / 270 Kg | 726 lb / 330 Kg | 792 lb / 360 Kg |
| AIR CONSUMPTION | 5L / Cycle | 14L / Cycle | 14L / Cycle | 14L / Cycle |
| STEAM CONSUMPTION | 0.33 hp / 5 Kg/h | 0.9 hp / 14 Kg/h | 1.63 hp / 25 Kg/h | 2.1 hp / 32 Kg/h |
| AIR PRESSURE | 73PSI / 0.5MPa | 73PSI / 0.5MPa | 73PSI / 0.5MPa | 73PSI / 0.5MPa |
| STEAM PRESSURE | 73PSI / 0.5MPa | 73PSI / 0.5MPa | 73PSI / 0.5MPa | 73PSI / 0.5MPa |
| AIR CONNECTION | 3/8B | 3/8B | 3/8B | 3/8B |
| STEAM CONNECTION | INLET 1/2B, OUTLET1/2B | INLET 1/2B, OUTLET1/2B | INLET 1/2B, OUTLET1/2B | INLET 1/2B, OUTLET1/2B |
| DIMENSION (mm) (W x D x H) (inch) |
720x996x1605 28.4x39.2x63.2 |
1220x946x1615 48.1x37.3x63.6 |
1500x996x1670 59.1x39.2x65.8 |
1500x996x1685 59.1x39.2x66.3 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
