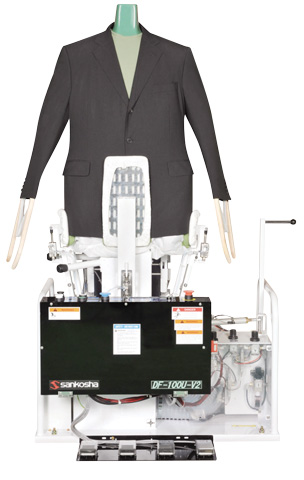

Rotary Form Finisher DF-100U-V2
| Click on above image to see video |
 |
Vent Clamps Insures highest quality for all vented garments 뒷면의 3개의 클램프가 다양한 세탁물을 안전하게 잡아줘서 하이 퀄리티의 휘니싱을 제공한다. |
|
 |
Up & Down Handles various size garments (up to 1800 mm). 자유로운 높 낮이 조절로 다양한 세탁물 처리 가능. |
|
 |
Inverter for Blower Adjustable for any type of fabric. 세탁물에 따라 조정 가능. |
|
 |
Rotation Easier to load saves time. 자유로운 바디 회전으로 손쉬운 작업과 시간 절약. |
Specification
| PRODUCT NAME | ROTARY FORM FINISHER | FORM FINISHER |
| MODEL | DF-100U-V2 | DF-050U-V3 |
| POWER | 220V, Single ph, 6A | 220V, 3ph, 2.8A |
| WEIGHT | 330 lb / 150 Kg | 220 lb / 100 Kg |
| AIR CONSUMPTION | 5L / Cycle | 5L / Cycle |
| STEAM CONSUMPTION | 0.78 hp / 12 Kg/h | 0.78 hp / 12 Kg/h |
| AIR PRESSURE | 73 PSI / 0.5MPa | 73 PSI / 0.5MPa |
| STEAM PRESSURE | 73 PSI / 0.5MPa | 73 PSI / 0.5MPa |
| AIR CONNECTION | 1/4 B | 1/4 B |
| STEAM CONNECTION | INLET 1/2 B, OUTLET1/2 B | INLET 1/2 B, OUTLET1/2 B |
| DIMENSION (mm) (W x D x H) (inch) |
1130 x 900 x 2050 44.5 x 35.4 x 80.7 |
760 x 720 x 2050 29.9 x 28.4 x 80.7 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
