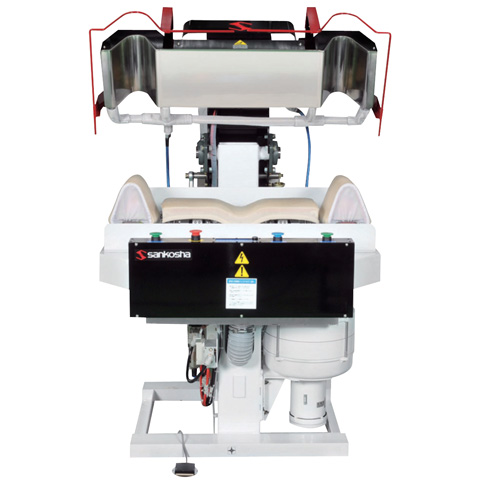

Double Collar & Cuff Press Tensioning Type LP-685U
- Collar tensioning function produces superior quality while preventing shrinkage
- Innovative design and technology
- Higher pitched cuff bucks to handle any womans blouse
 |
Voted Best! at Clean '11 |
|
 |
Tensioning Collar The unique tensioning feature will eliminate those frustrating wrinkles out of the collar. |
|
 |
Newly designed cuffs The higher angle on the cuffs will accommodate smaller women's blouses as well as french cuffs. |
|
 |
Built in Vacuum Reduces drying time and increases production. |
|
 |
Small Footprint Works efficiently with either two single bucks or one double buck. |
Specification
| PRODUCT NAME | SINGLE COLLAR & CUFF TENSIONING TYPE |
DOUBLE COLLAR & CUFF VACUUM TYPE |
QUADRUPLE COLLAR & CUFF TENSIONING TYPE |
| MODEL | LP-690U-V2 | LP-685U | LP-370U-V2 |
| POWER | 110-220V Single Phase, 0.8-0.4A | 220V 3Phase, 1.6A | 110-220V Single Phase, 0.8-0.4A |
| WEIGHT | 484 lbs / 220 Kg | 639 lbs / 290 Kg | 1034 lbs / 470 Kg |
| AIR CONSUMPTION | 23 Liter / Cycle | 14 Liter / Cycle | 57 Liter / Cycle |
| STEAM CONSUMPTION | 0.65 HP / 10 Kg/H | 0.42 HP / 6.5 Kg/H | 1.5 HP / 10 Kg/H |
| AIR PRESSURE | 85 PSI / 0.6 Mpa | 85 PSI / 0.6 Mpa | 85 PSI / 0.6 Mpa |
| STEAM PRESSURE | 85 PSI / 0.6 Mpa | 85 PSI / 0.6 Mpa | 85 PSI / 0.6 Mpa |
| AIR CONNECTION | 3/8 B | 3/8 B | 3/8 B |
| STEAM CONNECTION | Inlet 1/2 B, Outlet 1/2 B x 2 |
Inlet 1/2 B, Outlet 1/2 B x 2 |
Inlet 1/2 B, Outlet 1/2 B x 2 |
| DIMENSION (mm) (W x D x H) (inch) |
710 x 1000 x 1610 28.0 x 39.4 x 63.4 |
1000 x 880 x 1525 39.4 x 34.6 x 60.0 |
1385 x 1370 x 1790 54.5 x 53.9 x 70.5 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
