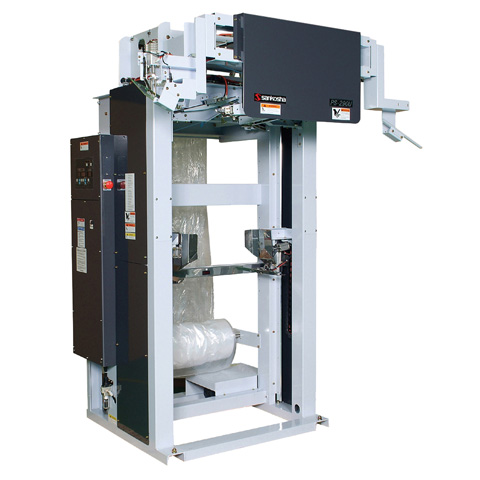

Automatic Bagging Machine PS-290U
Hourly Max. 280 pcs.
| Click on above image to see video |
Specification
| PRODUCT NAME | AUTOMATIC BAGGING MACHINE | |
| MODEL | PS-290U | PS-500U |
| POWER | 220V, 3ph, 6A | 220V, 3ph, 6A |
| WEIGHT | 726 lb / 330 Kg | 881 lb / 400 Kg |
| AIR CONSUMPTION | 12L / Cycle | 12L / Cycle |
| STEAM CONSUMPTION | - | - |
| AIR PRESSURE | 85PSI / 0.6MPa | 85PSI / 0.6MPa |
| STEAM PRESSURE | - | - |
| AIR CONNECTION | 1/4B | 1/4B |
| STEAM CONNECTION | - | - |
| DIMENSION (mm) (W x D x H) (inch) |
1700 x 1330 x 2080 66.9 x 52.3 x 81.9 |
1670 x 1250 x 2430 65.8 x 49.1 x 95.6 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
