The Difference

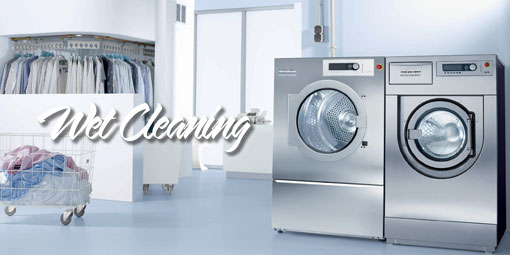

Miele Professional Wet Cleaning is a system that enables cleaners to safely process "Dry Clean Only" garments. This system was specifically designed to deliver optimum cleaning results while still providing outstanding protection to fibers. To protect the fibers, the garments are first wetted by a mixture of water and specially designed detergents. Only after this critical step does the actual cleaning process begin.

The Miele Professional washer accurately controls water levels, temperature settings, detergent dosing levels, and drum rotation rhythm. An exceptionally high final extraction cycle quickly removes the majority of water from the garments. With exceptional accuracy, the Miele Professional dryer then measures the garment's residual moisture, optimizing cycle times, saving energy, and protecting the garments from over drying.

The Benefits
Miele Professional Wet Cleaning is increasingly popular as both cleaners and their customers are discovering its many advantages. It produces superior cleaning results, providing garments with a fresh scent and a soft feel kind to sensitive skin.

Miele Professional Wet Cleaning enables cleaners to add flexibility to their plant or even replace current solvent-based cleaning methods. As approximately 90% of all soil-types are water-soluble, Miele Professional Wet Cleaning greatly reduces spotting time. Plus, the cleaner is able to produce whiter whites in an environmentally safe cleaning system.

Another benefit is that it extends the range of services to cover not only "Dry Clean Only" garments but also leather, suede, restoration work, wedding gowns, larger household items, stuffed animals, and sports pads. Miele machines also easily process traditional laundered garments, such as cotton dress shirts, jeans, and similar items.

The Future
Miele engineers design user-friendly program flexibility, superior performance, trouble-free operation, and limited environmental impact into every machine. These attributes are very evident in the Miele Professional Wet Cleaning system.

The Miele Professional Wet Cleaning system provides truly professional cleaning results with minimal water, electric, and detergent consumption. The Miele system uses only water and biodegradable detergent, making it the safest for the environment, operator, and customer.

Operators of the Miele system may also realize substantial financial benefits.Besides wet cleaning being proven by a recent Los Angeles County study as more cost effective than any other cleaning system on the market today, the Miele Professional Wet Cleaning
system is encouraged through various grant programs throughout the country.


Washer Extractor Specifications

MODEL PW-6101 PW-6131 PW-6161 PW-6201
Load Capacity

- Laundry

23 lbs / 10 kg 30 lbs / 13 kg 36 lbs / 16 kg 45 lbs / 20 kg
- Wet Cleaning 14 lbs / 6 kg 18 lbs / 8 kg 22 lbs / 10 kg 27 lbs / 12 kg
Heating Type Steam or Electric Steam or Electric Steam or Electric Steam or Electric
Machine Extrerior
- Front Stainless Steel Stainless Steel Stainless Steel Stainless Steel
- Lid and Sides Octoblue powder coat, galvanized Octoblue powder coat, galvanized Octoblue powder coat, galvanized Octoblue powder coat, galvanized
Machine Dimensions
- Height 55.12" (w/base) 55.12" (w/base) 55.12" 64.57"
- Width 31.65" 31.65" 36.38" 36.38"
- Depth 36.42" 39.57" 39.65" 44.88"
Drum Volume 26.4 gal
/ 100 liter
34.3 gallon
/ 130 liter
42.2 gallon
/ 160 liter
52.8 gallon
/ 200 liter
Drum Dimensions
- Diameter 23.2" 23.2" 26.7" 26.7"
- Deep 14.4" 14.4" 17.3" 21.7"
Door Opening
- Diameter
14.6" 14.6" 14.6" 14.6"
Drum Type HoneycombTM
Stainless Steel
HoneycombTM
Stainless Steel
HoneycombTM
Stainless Steel
HoneycombTM
Stainless Steel
Spin Speed 1200 RPM 1100 RPM 1150 RPM 1100 RPM
G-force 475 400 500 460
Control Type Profitronic M Profitronic M Profitronic M Profitronic M
Net Weight 729 lbs
/ 331.4kg
770 lbs
/ 350 kg
1022 lbs
/ 464.6 kg
1114 lbs
/ 506.4 kg
Electrical Connection
- Standard 3AC, 208V, 60Hz 3AC, 208V, 60Hz 3AC, 208V, 60Hz 3AC, 208V, 60Hz
- Optional 3AC, 230V, 60Hz 3AC, 230V, 60Hz 3AC, 230V, 60Hz 3AC, 230V, 60Hz
Fuse Rating
- Steam 3 x 20 3 x 20 3 x 20 3 x 20
- Electric 3 x 25 3 x 50 3 x 50 3 x 50
Total Rated Load
- Steam 2.3 kW 2.3 kW 3 kW 4.4 kW
- Electric 11 kW 17 kW 18 kW 19.3 kW
Required Water Flow Pressure
- Min 30 psi 30 psi 30 psi 30 psi
- Max 145 psi 145 psi 145 psi 145 psi
Required Compressed Air Pressure
- Min 60 psi 60 psi 60 psi 60 psi
- Max for Steam Valve 145 psi 145 psi 145 psi 145 psi
Maximum Floor Load 3970 N 4304 N 5469 N 6067 N
Steam Connection 1/2" 1/2" 1/2" 1/2"
BHP 3.07 2.93 3.07 BHP 4.61 BHP
Water Connection 3/4" 3/4" 3/4" 3/4"
Cold Water Line 3 3 3 3
Warm Water Line 1 1 1 1
Drain Line 3" vented 3" vented 3" vented 3" vented
Noise Level
Wash 62.8 dB 66.4 dB 65.5 dB 62.1 dB
Spin 79.9 dB 80 dB 87.4 dB 82.6 dB

Residual Moisture Dryer Specifications

MODEL PT-7251 PT-7331 PT-7401 PT-7501
Load Capacity

- Laundry

23 lbs / 10 kg 30 lbs / 13 kg 36 lbs / 16 kg 45 lbs / 20 kg
- Wet Cleaning 14 lbs / 6 kg 18 lbs / 8 kg 22 lbs / 10 kg 27 lbs / 12 kg
Heating Type Steam or Electric Steam or Electric Steam or Electric Steam or Electric
Machine Extrerior
- Front Stainless Steel Stainless Steel Stainless Steel Stainless Steel
- Lid and Sides Octoblue powder coat, galvanized Octoblue powder coat, galvanized Octoblue powder coat, galvanized Octoblue powder coat, galvanized
Machine Dimensions
- Height 55.12" 55.12" 55.12" 64.57"
- Width 35.67" 35.67" 35.67" 47.48"
- Depth 32.91" 40.12" 45.2" 39.45
Drum Volume 66 gal
/ 250 liter
86 gallon
/ 325 liter
106 gallon
/ 400 liter
132 gallon
/ 500 liter
Drum Dimensions
- Diameter 33.5" 33.5" 33.5" 43.3"
- Deep 17.6" 22.9" 28" 20.8"
Drum Type HoneycombTM
Stainless Steel
HoneycombTM
Stainless Steel
HoneycombTM
Stainless Steel
HoneycombTM
Stainless Steel
Control Type Profitronic M Profitronic M Profitronic M Profitronic M
Net Weight 360 lbs
/ 163.6kg
430 lbs
/ 195.5 kg
441 lbs
/ 200.5 kg
558 lbs
/ 253.6 kg
Electrical Connection
- Standard 3AC, 208V, 60Hz 3AC, 208V, 60Hz 3AC, 208V, 60Hz 3AC, 208V, 60Hz
- Optional 3AC, 230V, 60Hz 3AC, 230V, 60Hz 3AC, 230V, 60Hz 3AC, 230V, 60Hz
Fuse Rating
- Steam - 3 x 10 3 x 10 3 x 10
- Electric 3 x 50 3 x 50 3 x 70 3 x 80
Total Rated Load
- Steam - 0.8 kW 1.3 kW 1.3 kW
- Electric 14.3 kW 18.8 kW 23.8 kW 28.3 kW
Required Compressed Air Pressure
- Min - 60 psi 60 psi 60 psi
- Max for Steam Valve - 145 psi 145 psi 145 psi
Steam Connection - 1/2" 1/2" 1/2"
BHP - 3.13 BHP 3.13 BHP 3.86 BHP
PSI for Steam Connection - 70 PSI 70 PSI 70 PSI
Vent Diameter 6" 6" 6" 6"
Evaporation Rate 7.5 Floz. / Minute 10 Floz. / Minute 12 Floz. / Minute 15 Floz. / Minute
