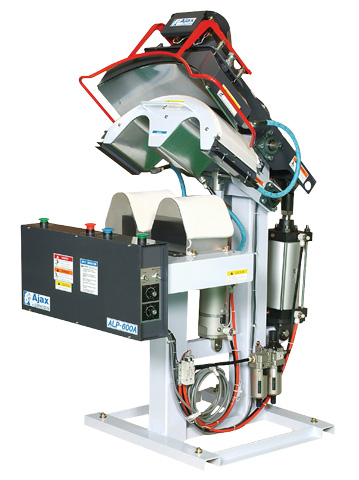

Single Non-Tensioning Collar and Cuff Press ALP-600U
| Click on above image to see video |
Specification
| PRODUCT NAME | SINGLE COLLAR & CUFF |
| MODEL | ALP-600U |
| POWER | 220V Single Phase, 0.14A |
| WEIGHT | 565 lbs / 256 Kg |
| AIR CONSUMPTION | 50 Liter / Cycle |
| STEAM CONSUMPTION | 0.6 HP / 10 Kg/H |
| AIR PRESSURE | 85 PSI / 0.6 Mpa |
| STEAM PRESSURE | 85 PSI / 0.6 Mpa |
| AIR CONNECTION | 3/8 B |
| STEAM CONNECTION | Inlet 1/2 B, Outlet 1/2 B x 2 |
| DIMENSION (mm) (W x D x H) (inch) |
730 x 1080 x 1237 28.7 x 42.5 x 48.7 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
