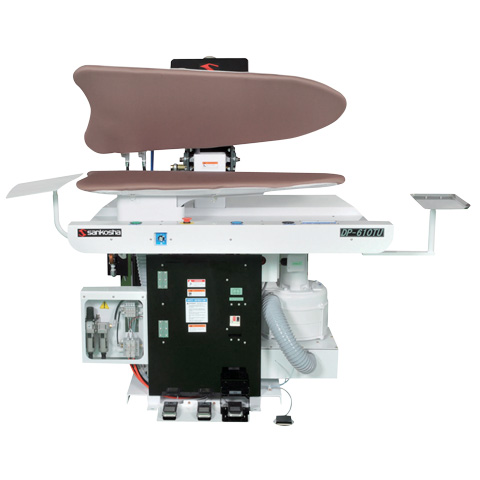

Utility Legger Press DP-610TU

- Scissor type press
- Surface area evenly pressed
- Dual press pressure (Hard or Soft)

- Self contained vacuum
- Adjustable Dial for Vacuum & Blower
- Can press a wider range of fabrics


Specification

PRODUCT NAME UTILITY LEGGER PRESS UTILITY PRESS
MODEL DP-610TU DP-420TU
POWER 220V, 3ph, 5A 220V 3ph 5A
WEIGHT 748 lb / 340 Kg 683 lb / 310 Kg
AIR CONSUMPTION 12.5L / Cycle 12.5L / Cycle
STEAM CONSUMPTION 0.65 hp / 10 Kg/h 0.65 hp / 10 Kg/h
AIR PRESSURE 73PSI / 0.5MPa 73PSI / 0.5MPa
STEAM PRESSURE 73PSI / 0.5MPa 73PSI / 0.5MPa
AIR CONNECTION 3/8B 3/8B
STEAM CONNECTION INLET 1/2B, OUTLET1/2B INLET 1/2B, OUTLET1/2B
DIMENSION (mm)
(W x D x H) (inch)
1895 x 1005 x 1535
74.6 x 39.6 x 60.5
1595 x 1005 x 1550
62.8 x 39.6 x 61.0
