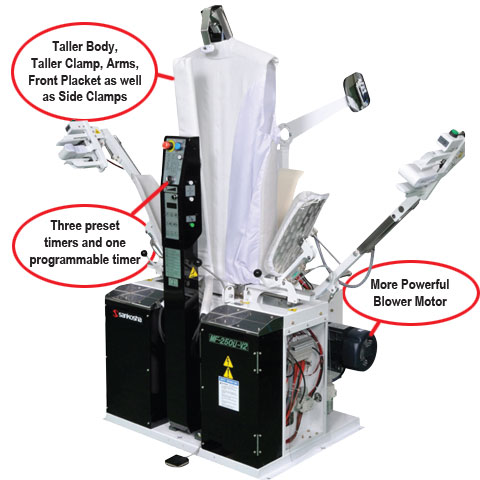

Multi Garment Finisher MF-250U V2


A. Change layout of Operation Panel:
- For easier operations
- Add 4 Mode Selections to enhance machine operations
- Available for "Release Option" for Tail Clamp and Side Clamp to deal with various design of garment and material
B. Improve blower power by 15% by reviewing blower case structure
C. Improve dry efficiency when pressing wet garment by changing body shape and body cover
D. Enlarge the body size to deal with XXL(18")
E. User-friendly short sleeve unit by "Clip Style"
F. User-friendly maintenance by putting "Cylinder Speed Control Valve" on the panel
G. Create a space for keeping "Clip" or small stuff


  Heated Front Clamp
Heater unit is installed, providing a better finishing quality.
옷의 앞쪽 부분을 특별히 퀄리티 높게 마무리하는 것을 도와 줍니다.

  Shoulder Expander
Shoulder expander is gap free, it makes for much better quality.

  Auto Arm Adjustment
짧은 소매, 긴 소매 모두에 적합한 Cuff Clamps는 최고의 휘니시 작업이 되도록 도와 줍니다.

  Tail Clamp Unit
Clamp Unit is larger so it can hold even a small ladies blouse.
작은 블라우스를 포함해서 모든 사이즈의 세탁물을 뒤에서 밑으로 당겨 준 다음 프레싱을 하므로 뛰어난 퀄리티의 휘니시를 도와 줍니다.

  Side Expander Unit
Side expanders are adjustable to any kind of garment (such as shaped side)
하와이언 스타일 또는 토미 바하마 같은 슬릿 타입의 셔츠들도 셋업하기가 쉽습니다.

  Increased Blower Motor
Power improved by 35%.
웻과 드라이 클리닝에 최고의 퀄리티를 제공할 수 있는 강력한 파워 모터를 장착 했습니다. (35% 파워 증가)

Specification
PRODUCT NAME MULTI-TENSIONING GARMENT FINISHER
MODEL MF-250U V2
POWER 220V 3ph 60Hz
WEIGHT 463 lb / 210 Kg
AIR CONSUMPTION 2.1L / Cycle
STEAM CONSUMPTION 1.04hp / 16Kg/h
AIR PRESSURE 73PSI / 0.5MPa
STEAM PRESSURE 73PSI / 0.5MPa
AIR PIPING DIAMETER 1/2B
STEAM PIPING DIAMETER INLET 1/2B OUTLET1/2B
DIMENSION (mm)
(W x D x H) (inch)
2070 x 1120 x 1680
81.5 x 44.1 x 66.15
